Product Description

‧Sawblade HSS Ø250 - Ø425mm, Ø350mm. (standard)
‧Hydraulically operated type.
‧Semi-automatic operation for clamping and cutting off.
‧Tool gap compensation device. (hydraulic)
‧Movable guard. (optional)

Product Specification

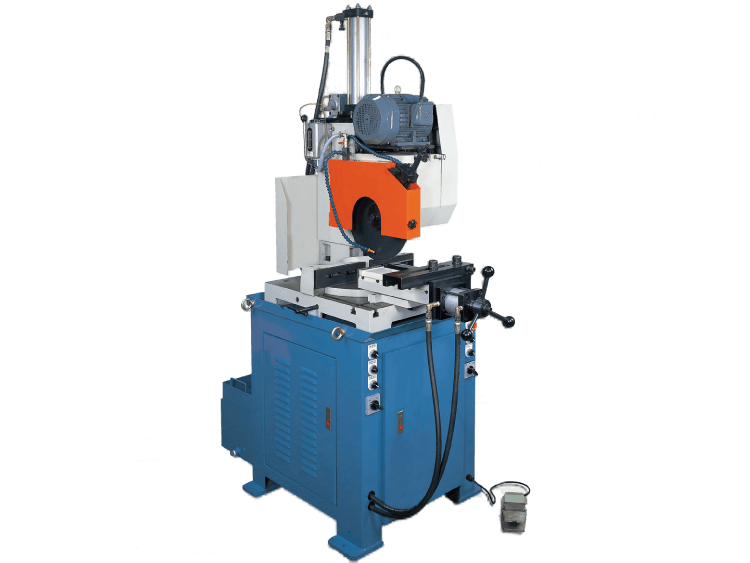

Model FHC-425SA
Main Drive Motor A:5HP / 3HP 2/4 Pole (std)
Low 50HZ/60HZ 70/35 rpm
High 50HZ/60HZ 120/60 rpm
Blade Speeds B:3HP 6 Pole (opt.)
50 HZ 35/20 rpm
60 HZ 42/23 rpm
Head Swivel L45° 90° R30°
Clamping Vise Single
Coolant Pump Motor 1/8 HP 40W

Saw Blade Size

 Diameter (mm) : HSS Ø250-Ø350(10"-14") Standard Ø350
Bore (mm) : Ø32
Pin Holes (mm) : 2xØ11xPCD 63
Air Pressure (Consumption) --
Hydraulic Pump Motor 2HP 4P
Operation Pressure 20-30 kg/cm²
Packing size (LxWxH) (mm) 1460x820x2230
N.W./G.W. (kg) 650/850
