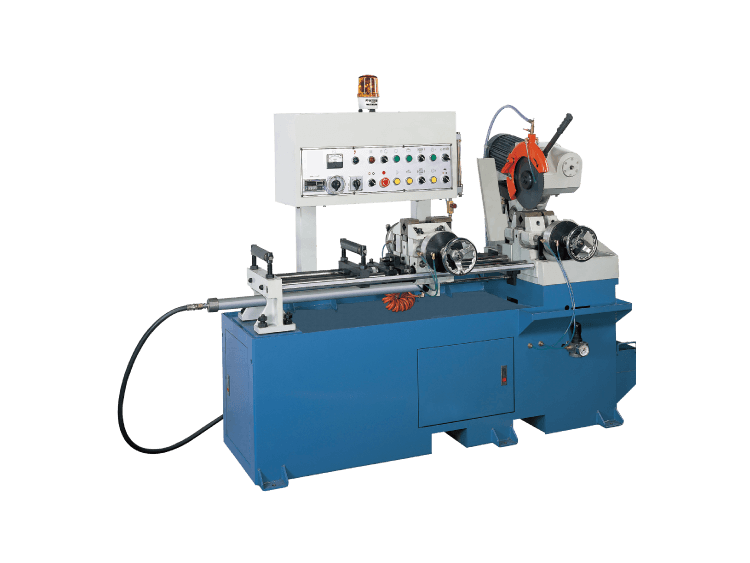

| Model |
FHC-300A |
| Main Drive Motor |
H Type 3.0HP/1.5HP (2/4 Pole)50/60 HZ Z |
| Blade Speeds |
H Type 50HZ 100/50 RPM (std.)
H Type 60HZ 120/60 RPM (std.)
L Type 50HZ 50/25 RPM (opt.)
L Type 60HZ 60/30 RPM (opt.)
|
| Head Swivel |
90° |
| Clamping Vise |
Double |
| Coolant Pump Motor |
40W |
| Max. Clamping Capacity |
100 |
Saw Blade Size
|
Diameter (mm) : HSS Ø250 - Ø325(10"-13") Standard Ø300 |
| Bore (mm) : Ø32 |
| Pin Holes (mm) : 2xØ11xPCD Ø63 |
Bar Feeding Length |
Single Stroke (mm) : 5 - 700 (27") |
| Double Stroke (mm) : 5 - 1400 (54") |
| Three Stroke (mm) : 5 - 2100 (81") |
| Operation Pressure |
6 kg/cm² (120 ℓ/min) |
| Packing size (LxWxH) (mm) |
2100x1050x1850 |
| N.W./G.W. (kg) |
850/1000 |
