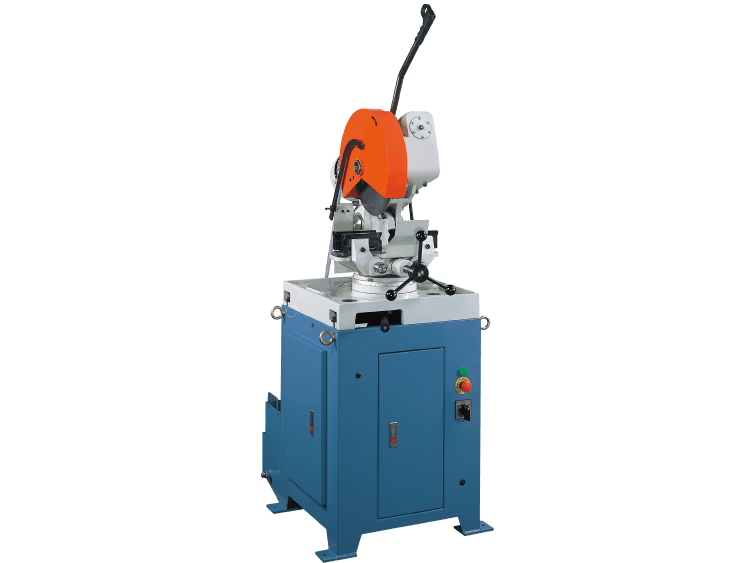

| Model |
FHC-350D |
| Main Drive Motor |
3HP/2HP (4/8 Pole) 50/60 HZ or
4HP/3HP (2/4 Pole) 50/60 HZ |
| Blade Speeds |
L Type : 50HZ 44/22 RPM, 60HZ 52/26 RPM (opt.)
M Type : 50HZ 58/29 RPM, 60HZ 70/35 RPM (std.)
H Type : 50HZ 86/43 RPM, 60HZ 105/52 RPM (opt.) |
| Head Swivel |
90°/45° |
| Clamping Vise |
Double |
| Coolant Pump Motor |
40W |
Saw Blade Size
|
Diameter (mm) : HSS Ø250 - Ø350(10"-14") Standard Ø350 |
| Bore (mm) : Ø32 |
| Pin Holes (mm) : 2xØ11xPCD 63 |
| Packing size (LxWxH) (mm) |
750x1060x1510 |
| N.W./G.W. (kg) |
300/360 |
