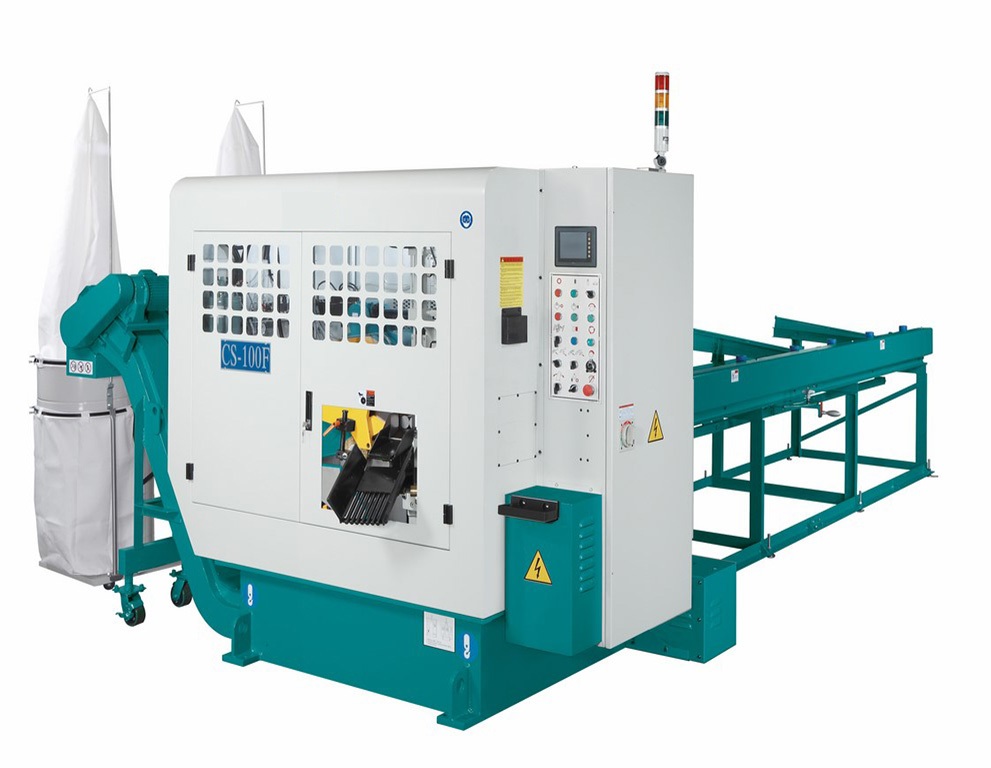

CS-100F

Home > Products > Metal Cutting Machine > Sawing Machine > Circular Saw > CS-100F CNC

Product Specification

Model	CS-100F
Cutting capacity (mm)	●16-100■10-80
Motor output (HP)	Blade 10/2P Hydraulic pump 2 Bar feed servo 1.13 Servo feedrate 1.73 Debris blower 0.5
Blade size (mm)	355x25.4xT3
Blade speed (rpm)	2500-4000
Blade feed cut	AC servo motor + ball screw
Bar feed	AC servo motor + ball screw
Auto feed length (mm)	Single feed 6-600 Multiple feed 600-9999
Auto chip conveyor	Chain belt chip conveyor + vacuum chip collector (opt.)
Cooling system	Air compressed oil mist
Packing size (LxWxH) (mm)	2550x2270x2260
N.W./G.W. (kg)	2650/2800 (with pallet)
