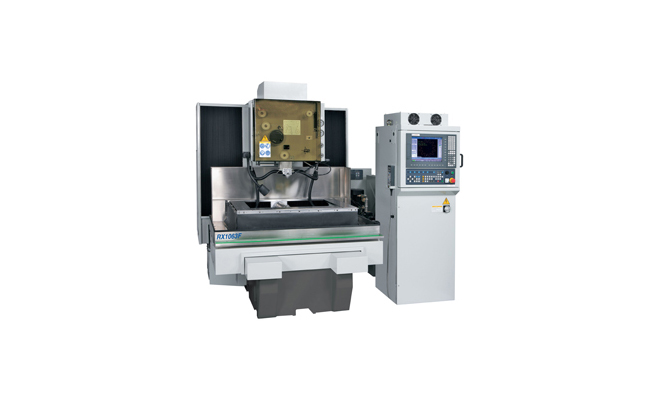

| Model | RX853F/S | RX1063F/S |
|---|
| X, Y axis travel (mm) |
800x500 |
1000x600 |
| U, V, Z axis travel (mm) |
150x150x300 |
150x150x300 |
| Max. size of working piece (WxDxH) (mm) |
1210x800x295 |
1430x900x295 |
| Max. weight of working piece (kgw) |
2000/1000 |
3000/1500 |
| XY feed rate (mm/min) |
max. 800 |
max. 800 |
| Motor system (axis) |
AC servo motor |
AC servo motor |
| Wire diameter range (mm) |
ø0.15~0.3 (ø0.25) |
ø0.15~0.3 (ø0.25) |
| Max. wire feed rate (mm/sec) |
300 |
300 |
| Wire tension (gf) |
300~2500 |
300~2500 |
Max. taper angle (°)
workpiece thickness (mm) |
±21°/140 (wide-angled nozzle, DA+DB=15mm) |
±21°/140 (wide-angled nozzle, DA+DB=15mm) |
| Outside dimension (WxDxH) (mm) |
2400x2800x2350/ 3150x3500x2350 |
2700x3000x2200/ 4000x4000x2200 |
| N.W. (including power and coolant system) (kgw) |
5460/5535 |
6500/7100 |
| Coolant tank system (L) |
340/1370 |
650/2000 |
