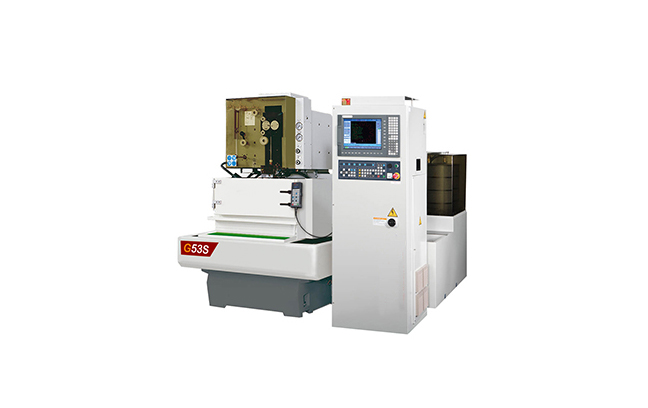

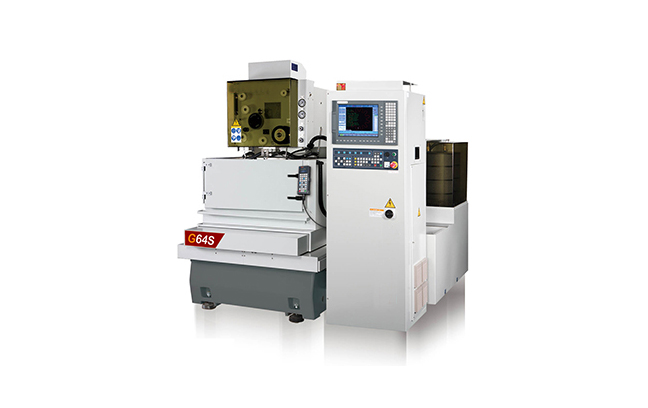

G Series

Model	G 32F/S	G 43F/S	G53F/S	G64F/S
X, Y axis (mm)	360x250	400x300	500x300	600x400
U, V, Z travel (mm)	60x60x220	60x60x220	60x60x220	100x100x300
Max. size of working piece (WxDxH) (mm)	725x560x215	725x600x215	825x600x215	910x700x295
Max. weight of working piece (kgw)	300	500/350	550/400	600/450
XY feed rate (mm/min)	Max. 800	Max. 800	Max. 800	Max. 800
Motor system (axis)	AC Servo Motor	AC Servo Motor	AC Servo Motor	AC Servo Motor
Wire diameter range (mm)	Ø0.15~0.3 (Ø0.25)	Ø0.15~0.3 (Ø0.25)	Ø0.15~0.3 (Ø0.25)	Ø0.15~0.3 (Ø0.25)
Max. wire feed rate (mm/sec)	300	300	300	300
Wire tension (gf)	300~2500	300~2500	300~2500	300~2500
Outside dimension (WxDxH) (mm)	2200x2100x2100 / 2300x2300x2100	2200x2130x2130 / 2200x2265x2130	2290x2130x2130 / 2290x2270x2130	2500x2450x2250 / 2500x2450x2250
N.W (including power and coolant system) (kgw)	2300/2375	2575/2800	2800/3195	3200/3595
Coolant tank system (L)	300/590	340/650	340/650	340/650
