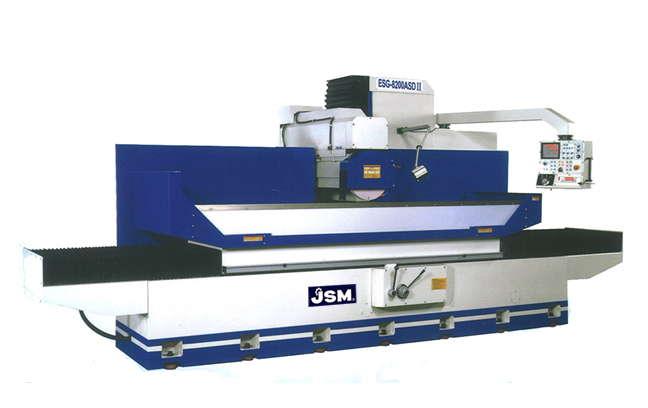

ESG-6120~8300 - Surface Grinding Machine

Product Specification

Model ESG-3A8200
ESG-8200ASD
ESG-8200ASDII		 ESG-3A8300
ESG-8300ASD
ESG-8300ASDII
Table Size (mm) 810x2050 810x3050
Max. grinding length Longitudinal (mm) 2050 3050
Max. grinding width Crosswise (mm) 810 810
Max. distance from table surface to spindle centerline (mm) 720 720
Standard magnetic chuck size (mm)　 800x1000x2pieces 800x1000x3pieces
Grinding spindle drive Speed 60HA, 1750rpm; 50HZ, 1450rpm
Power rating 15HP/4P (7.5KW) 15HP/4P (7.5KW)
Standard grinding wheel  Diameter (mm) 400 400
Width (mm) 50 50
Bore (mm) 127 127



Model ESG-3A6200
ESG-6200ASD
ESG-6200ASDII		 ESG-3A8150
ESG-8150ASD
ESG-8150ASDII
Table Size (mm) 610x2060 810x1550
Max. grinding length Longitudinal (mm) 2060 1550
Max. grinding width Crosswise (mm) 610 810
Max. distance from table surface to spindle centerline (mm) 720 720
Standard magnetic chuck size (mm)　 600x1000x2pieces 800x750x2pieces
Grinding spindle drive Speed 60HZ, 1750rpm; 50HZ, 1450rpm
Power rating 10HP/4P (7.5KW) 10HP/4P (7.5KW)
Standard grinding wheel  Diameter (mm) 400 400
Width (mm) 50 50
Bore (mm) 127 127



Model ESG-3A6120
ESG-6120ASD
ESG-6120ASDII		 ESG-3A6150
ESG-6150ASD
Table Size (mm) 610x1220 610x1524
Max. grinding length Longitudinal (mm) 1260 1560
Max. grinding width Crosswise (mm) 610 610
Max. distance from table surface to spindle centerline (mm) 720 720
Standard magnetic chuck size (mm)　 600x1200x1pieces 600x750x2pieces
Grinding spindle drive Speed 60HZ, 1750rpm; 50HZ, 1450rpm
Power rating 10HP/4P (7.5KW) 10HP/4P (7.5KW)
Standard grinding wheel  Diameter (mm) 400 400
Width (mm) 50 50
Bore (mm) 127 127
