CYA-102A/CYA-103A

Home > Products > Metal Cutting Machine > Others > Wire Straight & Cutting Machine > CYA-102A/CYA-103A CNC
PREV / NEXT

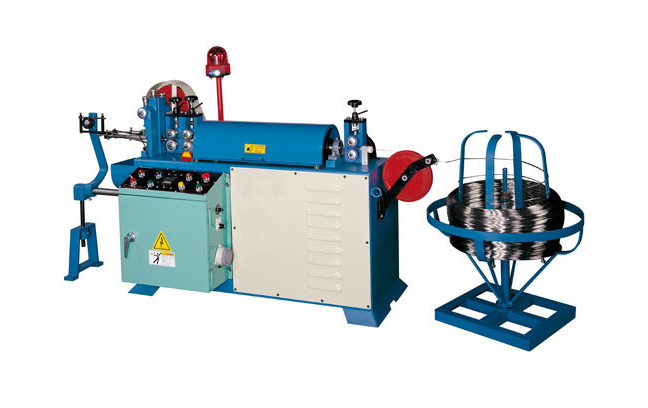

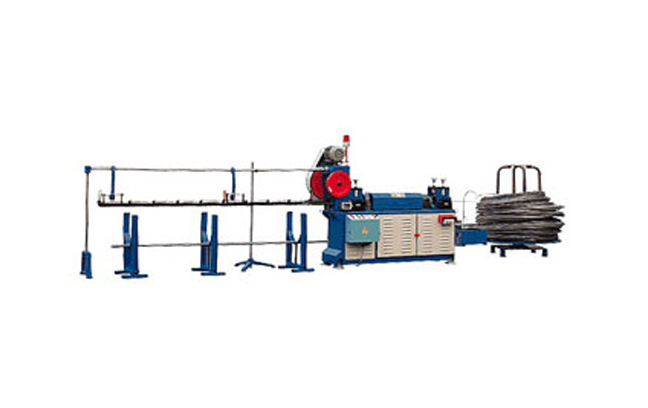

  • CYA-102A/CYA-103A - Wire Straight & Cutting Machine
  • CYA-102A/CYA-103A - Wire Straight & Cutting Machine
  • CYA-102A/CYA-103A - Wire Straight & Cutting Machine
  • CYA-102A/CYA-103A - Wire Straight & Cutting Machine

Product Specification

ModelCYA-102ACYA-103A
Diameter of strings (mm) 1.5~3.0 2.5~5.0
Length of strings (mm) 40~1800 10~2500
Cutting 1HP 1HP
Straightening 2HP 5HP
Feeding 1/2HP 10~60m/min 1HP 10~60m/min
Weight N.W. 500kg G.W. 620kg N.W. 650kg G.W. 780kg
Packing dimensions (LxWxH) (cm) 180x90x152 190x90x152
