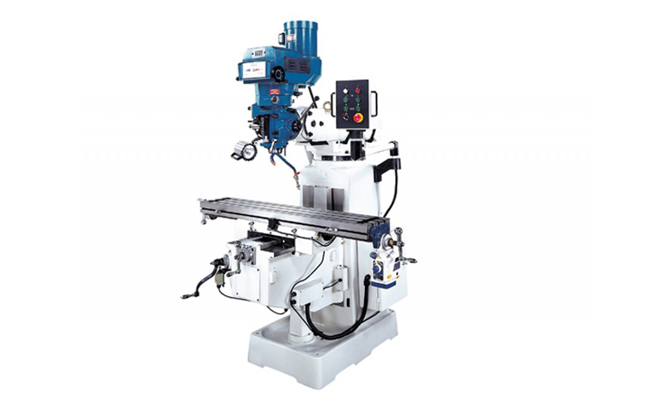

PBM-4S/PBM-4VS

Home > Products > Metal Cutting Machine > Milling Machine > Knee Type Vertical Milling Machine > PBM-4S/PBM-4VS CNC

CNC

Product Description

The very wide saddle 910mm keeps table movement smoothly in all directions, to prevent any deformation and allowance occurred.
Gear box feed to maintain powerful machining, will increase the working efficiency
Hardened and ground slide ways assures that the table will stay where it belongs

Product Specification

Model	PBM-4S	PBM-4VS
Table
Working suface	1270x254
Travel
XxYxZ-Manual	775x400x406
XxYxZ-Auto	700x400x406
Spindle
Spindle nose	R8 or N.S.T.30
Steps	8	variable
Spindle speed (rpm)	80-2720	60-4200
Swivelling angle	45°
Quill travel	127	127
Spindle nose to table	40-446
Spindle center to clumn	200-680
Cross travel of ram	480
Motor
Vertical spindle	2HP-4P	3HP-4P
