| Model |

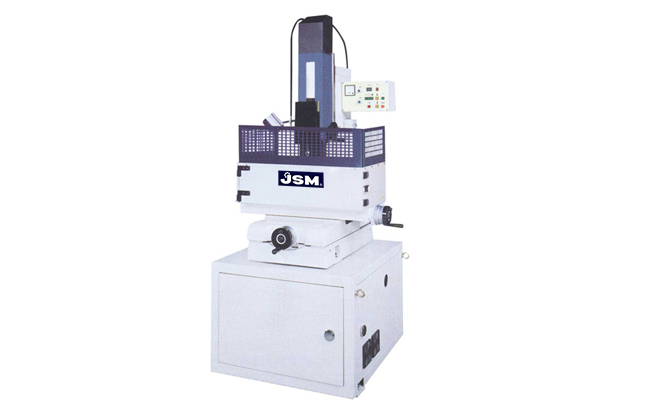

CM H30A |
CM H32A |
CM H86A |
| Max. work piece (WxDxH) (mm) |
600x400x205 |
800x460x350 |
700x950x310 |
| Max. work piece weight (kgw) |
100 |
180 |
1500 |
| Table travels (XxY) (mm) |
300x200 |
350x250 |
600x800 |
| Ram servo travel (Z1) (mm) |
340 |
340 |
340 |
| Work head travel (Z2) (mm) |
* |
200 |
- |
| Guide travel (mm) |
150 |
150 |
150 |
| Electrode dide (mm) |
0.2-3.0 |
0.2-3.0 |
0.2-3.0 |
| Max. length of tube electorde (mm) |
400 |
400 |
400 |
| Distance between spindle platen to work table (mm) |
50-205 |
3-350 |
155-310 |
| Tank capacity (L) |
16 |
16 |
16 |
| Dielectric fluid type |
water |
water |
water |
| Machine dimensions (WxDxH) (mm) |
1000x1030x2200 |
1380x1110x2360 |
1200x1450x2160 |
| Net weight (kg) |
550 |
600 |
2000 |
