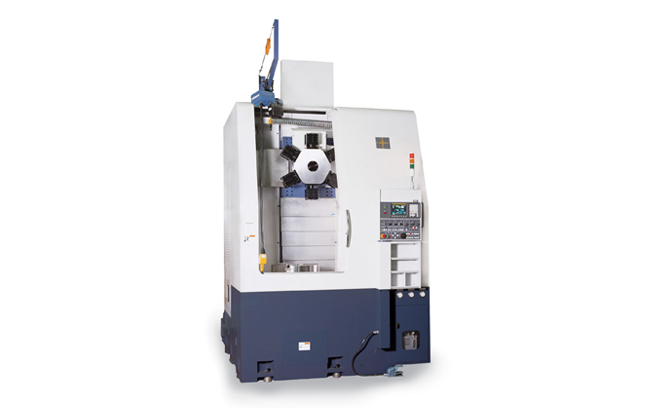

  • YV200-800 Series - CNC Vertical Turning Lathe
  • YV200-800 Series - CNC Vertical Turning Lathe
  • YV200-800 Series - CNC Vertical Turning Lathe
  • YV200-800 Series - CNC Vertical Turning Lathe
  • YV200-800 Series - CNC Vertical Turning Lathe
  • YV200-800 Series - CNC Vertical Turning Lathe
  • YV200-800 Series - CNC Vertical Turning Lathe
  • YV200-800 Series - CNC Vertical Turning Lathe

Product Description

  • Reduces inertia, avoiding out of round turning problems, achieving optimum accuracy.
  • Excellent surface contact between work piece and chuck to ensure high precision turning.
  • Suitable for irregular-shape, large, thin, and heavy work piece turning, easy part loading & unloading.
  • Multiple fixturing possibilities helping to reduce cost.
  • High rigidity designed machine base for low thermal displacement.
  • The ergonomic design of vertical turning lathes for increased work flow.
  • Vertical turning lathes occupy half the floor space of horizontal running lathes.

Product Feature

  • Simultaneous cutting using the twin series machines run by one operator, enhancing quality and reduce labour cost.
  • Twin series machines are fitted with 2 independent controllers to operate 1 or 2 machines, the best flexible production capacity can be achieved.
  • Twin series machines are combined together to provide the best clean environment and reduce turnaround times.
  • Increase production flow, and reduce the physical strength and enhances working efficiency.
  • Select the variety of turret options, to optimize the best machining methods.
  • The design of high rigidity structure is fitted with telescopic guideway covers to prevent chip & coolant contamination.

Product Specification

Machine SpecificationsYV200BYV200EYV200E+CYV250A
YV200BR/BLYV200ER/ELYV200Er+C/EL+CYV250AR/AL
Machine Capacity
3 Jaw Hydraulic Chuck (mm) 8" 8" 8" 10"
Max. Turning Diameter (mm) Ø250 Ø250 Ø250 Ø350
Max. Turning Height (mm) 200 200 250 250
Max. Work Piece Weight (kg) 200 200 200 300
Travel
X Axis Travel (mm) -40,+250 -40,+160 -40,+210 -20,+260
Z Axis Travel (mm) 450 400 450 450
Spindle
Spindle Nose A2-6 A2-6 A2-6 A2-8
Spindle Speed Low Gear
(min-1)		 50~3500 50~3500 50~3500 50~2500
High Gear
(min-1)
Live Spindle Speed (min-1) — — 1~4000 —
Feed Rate
X Axis Rapid Traverse (m/min) 12 12 12 12
Z Axis Rapid Traverse (m/min) 24 24 24 24
Turret
Turret Type Gang Tool Horizontal VDI40 Vertical
Number of Tools (pcs) 4 8 8 6
Tool Shank Size (mm) □25,Ø40 □25,Ø32 □25,Ø40 □25,Ø40
FANUC Motor
Spindle Motor (kW) 9/11(αρ18) 9/11(αρ18) 9/11(αρ18) 11/15(αρ22)
Live Spindle Motor (kW) — — 2.2/3.7(α2) —
Electrical system
Controller Fanuc 0i-T Fanuc 0i-T Fanuc 0i-T Fanuc 0i-T



Machine SpecificationsYV250BYV250EYV250E+CYV320A
YV250BR/BLYV250ER/ELYV250ER+C/EL+CYV320AR/AL
Machine Capacity
3 Jaw Hydraulic Chuck (mm) 10" 10" 10" 12"
Max. Turning Diameter (mm) Ø350 Ø350 Ø350 Ø450
Max. Turning Height (mm) 250 250 250 300
Max. Work Piece Weight (kg) 300 300 300 500
Travel
X Axis Travel (mm) -40,+250 -50,+200 -40,+210 -40,+300
Z Axis Travel (mm) 450 450 450 500
Spindle
Spindle Nose A2-8 A2-8 A2-8 A2-8
Spindle Speed Low Gear
(min-1)		 5~2500 50~2500 50~2500 50~2500
High Gear
(min-1)
Live Spindle Speed (min-1) — — 1~4000 —
Feed Rate
X Axis Rapid Traverse (m/min) 12 12 12 12
Z Axis Rapid Traverse (m/min) 24 24 24 24
Turret
Turret Type Gang Tool Horizontal VDI40 Vertical
Number of Tools (pcs) 4 8 8 6
Tool Shank Size (mm) □25,Ø40 □25,Ø32 □25,Ø40 □25,Ø40
FANUC Motor
Spindle Motor (kW) 11/15(αρ22) 11/15(αρ22) 11/15(αρ22) 18.5/22(αρ40)
Live Spindle Motor (kW) — — 2.2/3.7(α2) —
Electrical system
Controller Fanuc 0i-T Fanuc 0i-T Fanuc 0i-T Fanuc 0i-T



Machine SpecificationsYV320BYV320CYV320EYV320E+C
YV320BR/BLYV320ER/ELYV320ER+C/EL+C
Machine Capacity
3 Jaw Hydraulic Chuck (mm) 12" 12" 12" 12"
Max. Turning Diameter (mm) Ø450 Ø450 Ø450 Ø450
Max. Turning Height (mm) 300 300 300 300
Max. Work Piece Weight (kg) 500 500 500 500
Travel
X Axis Travel (mm) -75,+295 -50,+310 -50,+290 -15,+300
Z Axis Travel (mm) 500 500 500 500
Spindle
Spindle Nose A2-8 A2-8 A2-8 A2-8
Spindle Speed Low Gear
(min-1)		 50~2500 50~2500 50~2500 50~2500
High Gear
(min-1)
Live Spindle Speed (min-1) — — — 1~1600
Feed Rate
X Axis Rapid Traverse (m/min) 12 12 12 12
Z Axis Rapid Traverse (m/min) 24 24 24 24
Turret
Turret Type Gang Tool VDI50 Horizontal VDI40
Number of Tools (pcs) 4 10 8 10
Tool Shank Size (mm) □25,Ø40 □32,Ø50 □32,Ø40 □25,Ø40
FANUC Motor
Spindle Motor (kW) 18.5/22(αρ40) 18.5/22(αρ40) 18.5/22(αρ40) 18.5/22(αρ40)
Live Spindle Motor (kW) — 3.7/5.5(α3) — 3.7/5.5(α3)
Electrical system
Controller Fanuc 0i-T Fanuc 0i-T Fanuc 0i-T Fanuc 0i-T



Machine SpecificationsYV420AYV420EYV500AYV500CYV500E
YV420AR/ALYV420ER/ELYV500AR/ALYV500ER/EL
Machine Capacity
3 Jaw Hydraulic Chuck (mm) 15" 15" 15" 15" 15"
Max. Turning Diameter (mm) Ø500 Ø500 Ø550 Ø550 Ø550
Max. Turning Height (mm) 400 400 400 500 500
Max. Work Piece Weight (kg) 500 500 1200 1200 1200
Travel
X Axis Travel (mm) -30,+330 -12,+350 -40,+400 -40,+400 -20,+410
Z Axis Travel (mm) 500 500 620 620 620
Spindle
Spindle Nose A2-8 A2-8 A2-11 A2-11 A2-11
Spindle Speed Low Gear
(min-1)		 50~2500 50~2500 50~2000 50~2000 50~2000
High Gear (min-1)
Live Spindle Speed (min-1) — — — — —
Feed Rate
X Axis Rapid Traverse (m/min) 12 12 12 12 12
Z Axis Rapid Traverse (m/min) 24 24 20 20 20
Turret
Turret Type Vertical Horizontal Vertical VDI50 Horizontal
Number of Tools (pcs) 6 8 6 10 10
Tool Shank Size (mm) □25,Ø40 □32,Ø40 □32,Ø50 □32,Ø50 □32,Ø50
FANUC Motor
Spindle Motor (kW) 18.5/22(αρ40) 18.5/22(αρ40) 18.5/22(αρ40) 18.5/22(αρ40) 18.5/22(αρ40)
Live Spindle Motor (kW) — — — 3.7/5.5(α3) —
Electrical system
Controller Fanuc 0i-T Fanuc 0i-T Fanuc 0i-T Fanuc 0i-T Fanuc 0i-T



Machine SpecificationsYV500E+CYV500ATCYV500ATC+CYV550A
YV500ER+C/EL+CYV550AR/AL
Machine Capacity
3 Jaw Hydraulic Chuck (mm) 15" 15" 15" 18"
Max. Turning Diameter (mm) Ø550 Ø550 Ø550 Ø650
Max. Turning Height (mm) 500 500 500 500
Max. Work Piece Weight (kg) 1200 1200 1200 1200
Travel
X Axis Travel (mm) -10,+420 -55,+650 -55,+650 -50,+740
Z Axis Travel (mm) 620 620 620 620
Spindle
Spindle Nose A2-11 A2-11 A2-11 A2-11
Spindle Speed Low Gear
(min-1)		 50~2000 50~2000 50~2000 50~2000
High Gear
(min-1)
Live Spindle Speed (min-1) 1~1600 — 1~2400 —
Feed Rate
X Axis Rapid Traverse (m/min) 12 12 12 12
Z Axis Rapid Traverse (m/min) 20 20 20 20
Turret
Turret Type VDI50 ATC ATC Vertical
Number of Tools (pcs) 10 12 12 6
Tool Shank Size (mm) □32,Ø50 BT50 BT50 □32,Ø50
FANUC Motor
Spindle Motor (kW) 18.5/22(αρ40) 18.5/22(αρ40) 18.5/22(αρ40) 18.5/22(αρ40)
Live Spindle Motor (kW) 3.7/5.5(α3) — 5.5/7.5(α6) —
Electrical system
Controller Fanuc 0i-T Fanuc 0i-T Fanuc 0i-T Fanuc 0i-T



Machine SpecificationsYV550EYV600AYV600EYV600E+C
YV550ER/ELYV600AR/ALYV600ER/ELYV600ER+C/EL+C
Machine Capacity
3 Jaw Hydraulic Chuck (mm) 18" 24" 24" 24"
Max. Turning Diameter (mm) Ø650 Ø750 Ø750 Ø750
Max. Turning Height (mm) 500 600 600 600
Max. Work Piece Weight (kg) 1200 1800 1800 1800
Travel
X Axis Travel (mm) -50,+430 -50,+700 -50,+475 -50,+415
Z Axis Travel (mm) 620 800 800 800
Spindle
Spindle Nose A2-11 A2-11 A2-11 A2-11
Spindle Speed Low Gear
(min-1)		 50~2000 20~340 20~340 20~340
High Gear
(min-1)		 340~1500 340~1500 340~1500
Live Spindle Speed (min-1) — — — 1~1600
Feed Rate
X Axis Rapid Traverse (m/min) 12 12 12 12
Z Axis Rapid Traverse (m/min) 20 20 20 20
Turret
Turret Type Horizontal Vertical Horizontal VDI50
Number of Tools (pcs) 10 6 10 10
Tool Shank Size (mm) □32,Ø50 □32,Ø50 □32,Ø50 □32,Ø50
FANUC Motor
Spindle Motor (kW) 18.5/22(αρ40) 18.5/22(αρ40) 18.5/22(αρ40) 18.5/22(αρ40)
Live Spindle Motor (kW) — — — 5.5/7.5(α6)
Electrical system
Controller Fanuc 0i-T Fanuc 0i-T Fanuc 0i-T Fanuc 0i-T



Machine SpecificationsYV600ATCYV600ATC+CYV700AYV700E
YV700AR/ALYV700ER/EL
Machine Capacity
3 Jaw Hydraulic Chuck (mm) 24" 24" 24" 24"
Max. Turning Diameter (mm) Ø750 Ø750 Ø800 Ø800
Max. Turning Height (mm) 600 600 600 600
Max. Work Piece Weight (kg) 1800 1800 1800 1800
Travel
X Axis Travel (mm) -50,+415 -50,+650 -50,+800 -50,+500
Z Axis Travel (mm) 800 800 800 800
Spindle
Spindle Nose A2-11 A2-11 A2-11 A2-11
Spindle Speed Low Gear
(min-1)		 20~340 20~340 20~340 20~340
High Gear
(min-1)		 340~1500 340~1500 340~1500 340~1500
Live Spindle Speed (min-1) — 1~2400 — —
Feed Rate
X Axis Rapid Traverse (m/min) 12 12 12 12
Z Axis Rapid Traverse (m/min) 20 20 20 20
Turret
Turret Type ATC ATC Vertical Horizontal
Number of Tools (pcs) 12 12 6 10
Tool Shank Size (mm) BT50 BT50 □32,Ø50 □32,Ø50
FANUC Motor
Spindle Motor (kW) 18.5/22(αρ40) 18.5/22(αρ40) 18.5/22(αρ40) 18.5/22(αρ40)
Live Spindle Motor (kW) — 5.5/7.5(α6) — —
Electrical system
Controller Fanuc 0i-T Fanuc 0i-T Fanuc 0i-T Fanuc 0i-T



Machine SpecificationsYV800AYV800EYV800E+CYV800ATCYV800ATC+C
YV800AR/ALYV800ER/ELYV800ER+C/EL+C
Machine Capacity
3 Jaw Hydraulic Chuck (mm) 24" 24" 24" 24" 24"
Max. Turning Diameter (mm) Ø900 Ø900 Ø900 Ø900 Ø900
Max. Turning Height (mm) 700 700 700 700 700
Max. Work Piece Weight (kg) 3000 3000 3000 3000 3000
Travel
X Axis Travel (mm) -30,+750 -50,+615 -50,+730 -50,+600 -50,+600
Z Axis Travel (mm) 850 850 850 850 850
Spindle
Spindle Nose A2-11 A2-11 A2-11 A2-11 A2-11
Spindle Speed Low Gear (min-1) 10~120 10~120 10~120 10~120 10~120
High Gear (min-1) 120~600 120~600 120~600 120~600 120~600
Live Spindle Speed (min-1) — — 1~1600 — 1~2400
Feed Rate
X Axis Rapid Traverse (m/min) 12 12 12 12 12
Z Axis Rapid Traverse (m/min) 20 20 20 20 20
Turret
Turret Type Vertical Horizontal VDI50 ATC ATC
Number of Tools (pcs) 6 10 10 12 12
Tool Shank Size (mm) □32,Ø50 □32,Ø50 □32,Ø50 BT50 BT50
FANUC Motor
Spindle Motor (kW) 18.5/22(αρ40) 18.5/22(αρ40) 18.5/22(αρ40) 18.5/22(αρ40) 18.5/22(αρ40)
Live Spindle Motor (kW) — — 7.5/11(α8) — 7.5/11(α8)
Electrical system
Controller Fanuc 0i-T Fanuc 0i-T Fanuc 0i-T Fanuc 0i-T Fanuc 0i-T
