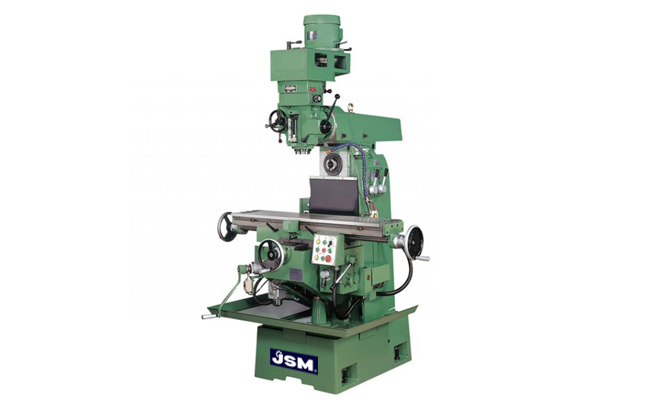

PBM-250 Series

Model	PBM-GS250	PBM-GVS250	PBM-G250	PBM-H250
Table
Size (LxW)	1100x250
Travel
XxYxZ	700x250x440
Spindle
Spindle nose	NST40
Steps	10	variable	8	-
Spindle speed rpm	60-3600	80-3800	260-3370	-
Swivelling angle	45
Quill travel	127	127	125	-
Spindle nose to table	30-470	30-470	50-490	-
Spindle center to column	200-500	200-500	150-450	-
Cross travel of ram	300
Horizontal spindle
Spindle nose	NST40
Spindle speed rpm	70-1320(6 steps)
Spindle to bottom of ram	115
Spindle center to table	0-420
Motor
Vertical spindle	3HP-4P	5HP-4P	2HP-4P/8P	-
Horizontal spindle	3HP-4P
