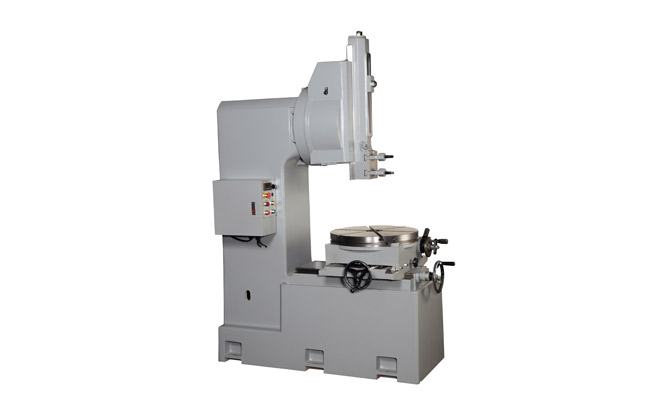

SW-300 / SW-350 Slotting Machine

Product Specification

Model SW-300 SW-350
Tool travel (mm) 60-300 60-350
Tool to column distance (mm) 510 550
Ram adjustment (mm) 420 420
Diameter of dividing table (mm) 450 560
Head to table distance (mm) 470 450
Longitudinal travel (mm) 400 400
Transverse Travel (mm) 320 320
Head inclination 30º 30º
Strokes per minute 20-60 20-60
Motor power (HP) 3 3
Net / Gross Weight 1550 / 1650 1700 / 1800
Overal Dimension (mm) 1600x940x2050 1400x750x1950
Packing dimension (mm) 1700x1000x2200 1760x910x2220
