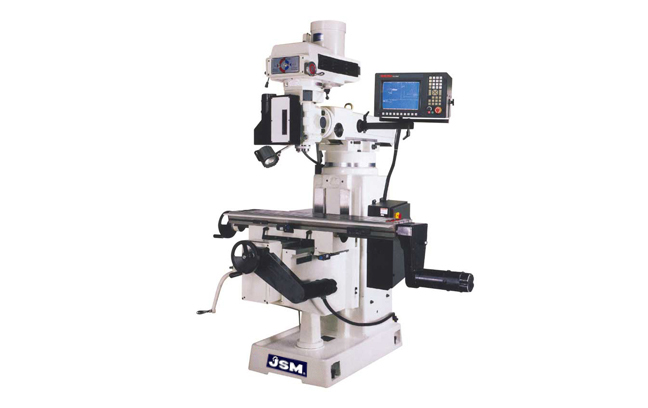

CV400/CV520 - NC Milling Machine

Product Specification

Model CV400 CV520
Table size (mm) 1370x250 1370x250
Longitudinal travel (X axis) (mm) 830 830
Cross travel (Y axis) (mm) 380 405
Travel of knee (Z axis) (mm) 355 378
Travels of Z axis (Quill) (mm) 127 127
Ram travel (mm) 560 560
Table to spindle nose (mm) 150-505 150-528
Head swivel (R&L) 45 45
Head tilt (up & down) 45 -
Spindle to column (mm) 159-719 168-730
Spindle motor (HP) 3 5
Spindle taper NST30 NST40
Spindle speeds (rpm) 60Hz 60-4500rpm 60Hz 60-4500
50Hz 50-3800rpm 50Hz 50-3800
