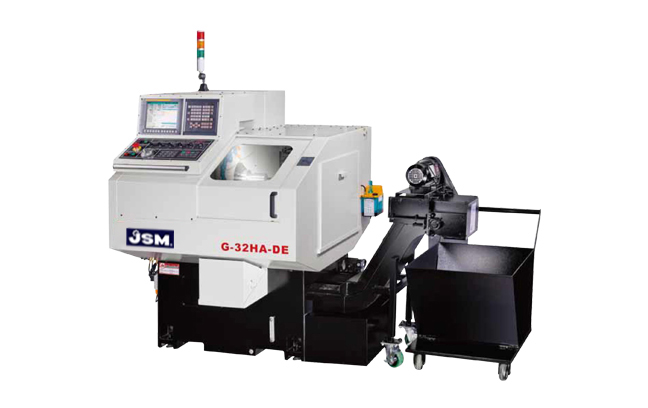

G-32HA-DE

Product Description

Specialized precision CNC lathe for component machining, ID/OD/cross/off-center end working can be done on the same single machine.
Cs contour axis, available for arbitrary degree spindle-locked indexing or contouring (like engraving, etc.)
On request, special-purpose CNC machine for screw driver manufacturing is also available.
Center height of OD tool can be adjusted easily.
Interchangeable between cross rotary ER16 collet holder & fixed OD tool holder

Left-handed cut0off tool holder
2-position OD tool holder (tool shank radially mounted)
3-position face live tool rest (using ER11 collet) - detachable, mounted on 4th cross live tool position
Starting from the lowest tool in order, totally 3 cross live tools can be changed to fixed OD tools.
Product catcher

G-32HA-DE	G-25/30/32HA-DE	G-25/30/32HA-D	G-25/30/32HA-T
Axis name	X, Y, Z, C	X, Y, Z, C	X, Z
Bar capacity (mm)	25/30/32	25/30/32	25/30/32
Max. turning length	Bar diameter x 3
Spindle bore (mm)	34	34	34
Collet type	161E/163E/164E
3-jaw chuck size	5 inch	5 inch	5 inch
X-axis travel (mm)	480	480	480
Z-axis travel (if collet) (mm)	95 (Between collet and cut-off tool holder)
6-position tool turret	None	None	None
Spindle motor (rated/15min.)	2.2/3.7kW	2.2/3.7kW	2.2/3.7kW
Max. spindle speed (rpm)	6000	6000	6000
Cross spindle motor/speed (kW/rpm)	1kW/4000rpm	1kW/4000rpm	None
Face live tool No.s/collet	3/ER11	None	None
Cross live tool No.s	3	4	4
OD tool shank size (mm)	16x16	16x16	16x16
Fixed ID tool collet	ER16	ER16	ER16
Cross live tool collet	Er16	ER16	None
