Product Description

We set DY series high professional standards in manufacturing precision high-speed lathes, always insisting in the management philosophy of "Best quality, best service, research & development"

Product Specification

DY-SeriesDY-350CDY-410CDY-510C
Machining Capability
Distance between centers (mm) 1000 1250/1500/2000/3000
Swing over bed (mm) 410 410 510
Swing over cross slide (mm) 200 200 300
Main Spindle
Spindle nose D1-6 D1-8
Spindle bore (mm) 54 80
Spindle speed (rpm) L:50-450 M:200-1300 H:600-3000 L:30-300 M:50-850 H:140-2500 (bore 102:1800rpm)
Spindle taper MT6 MT7/MT9
Travel
X axis (Cross travel) (mm) 180 200
Z axis (Longitudinal travel) (mm) 750/1250 950/1200/1700
Y axis (Opt.) (mm) ±40 ±40
Feeds
X axis rapid traverse 5M/min 5M/min
Z axis rapid traverse 7.5M/min 7.5M/min
Cutting feed rate 0.001-500mm/rev (0.0004"-20"/rev) 0.001-500mm/rev (0.0004"-20"/rev)
Motors
Main motor (KW) 5 7.5
Tailsotck
Quill diameter (mm) 54 75
Quill travel (mm) 130 150
Quill taper MT4 MT5



DY-SeriesDY-530CDY-630CDY-730C
Machining Capability
Distance between centers (mm) 1000/1500/2000/3000/4000
Swing over bed (mm) 530 630 730
Swing over cross slide (mm) 310 410 510
Main Spindle
Spindle nose D1-8, 104mm: L:50-300, H:300-2000rpm
Spindle bore (mm) D1-11, 130mm: L:50-300, H:300-1500rpm
Spindle speed (rpm) 　
Spindle taper MT10 or MT15
Travel
X axis (Cross travel) (mm) 360
Z axis (Longitudinal travel) (mm) 700/1200/1700/2700/3700
Y axis (Opt.) (mm) ±40
Feeds
X axis rapid traverse 5M/min
Z axis rapid traverse 7.5M/min
Cutting feed rate 0.001-500mm/rev (0.0004"-20"/rev)
Motors
Main motor (KW) 18.5
Tailsotck
Quill diameter (mm) 90
Quill travel (mm) 203
Quill taper MT5



DY-SeriesDY-660CDY-760CDY-860CDY-1000CDY-1100C
Machining Capability　
Distance between centers (mm) 1000/1500/2000/3000/4000/5000/6000/7000/8000/9000/
10000/11000/12000/13000/14000/15000/16000
Swing over bed (mm) 660 760 860 1000 1100
Swing over cross slide (mm) 310 410 510 650 750
Main Spindle
Spindle nose D1-11, 130mm, L:40-130, M:130-400, H:400-1200 D1-11, 130mm, L:40-130, M:130-400, H:400-1200   A2-11, 165mm, L:20-110, M:110-320, H:320-660
Spindle bore (mm) A2-11, 165mm, L:20-110, M:110-320, H:320-660 A2-15, 230mm, L:20-110, M:110-320, H:320-660     A2-20, 310mm, L:20-100, M:100-200, H:200-400
Spindle speed (rpm) A2-15, 230mm, L:16-61, M:50-190, H:150-570 A2-20, 360mm, L:20-100, M:100-200, H:200-300     A2-28, 410mm, L:20-100, M:100-200, H:200-250
Spindle taper MT15 MT15
Travel
X axis (Cross travel) (mm) 330 380 430 500 550
Z axis (Longitudinal travel) (mm) DBC minus 350mm DBC minus 350mm
Y axis (Opt.) (mm) ±55 ±65
Feeds
X axis rapid traverse 5M/min 5M/min
Z axis rapid traverse 5M/min 5M/min
Cutting feed rate 0.001-500mm/rev (0.0004"-20"/rev) 0.001-500mm/rev (0.0004"-20"/rev)
Motors
Main motor (KW) 22 22
Tailsotck
Quill diameter (mm) 115 115
Quill travel (mm) 300 300
Quill taper MT6 MT6

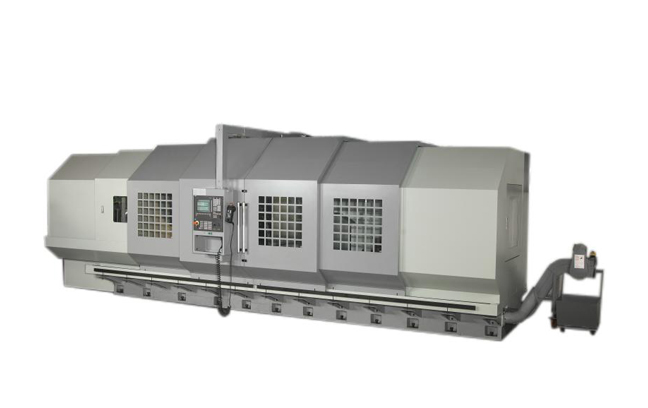

DY-SeriesDY-1200CDY-1300CDY-1400CDY-1500C
Machining Capability
Distance between centers (mm) 1500/2000/3000/4000/5000/6000/7000/8000/9000/
10000/11000/12000~25000
Swing over bed (mm) 1200 1300 1400 1500
Swing over cross slide (mm) 820 920 1020 1120
Main Spindle
Spindle nose A2-11, 165mm, L:20-110, M:110-320, H:320-660     A2-15, 230mm, L:20-110, M:110-320, H:320-660
Spindle bore (mm) A2-20, 310mm, L:20-100, M:100-200, H:200-400     A2-20, 360mm, L:20-100, M:100-200, H:200-300
Spindle speed (rpm) A2-28, 410mm, L:20-100, M:100-200, H:200-250
Spindle taper 　
Travel
X axis (Cross travel) (mm) 600 650 700 750
Z axis (Longitudinal travel) (mm) DY-1200C
Y axis (Opt.) (mm) ±80
Feeds
X axis rapid traverse 5M/min
Z axis rapid traverse 5M/min
Cutting feed rate 0.001-500mm/rev (0.0004"-20"/rev)
Motors
Main motor (KW) 30
Tailsotck
Quill diameter (mm) 140/200
Quill travel (mm) 350
Quill taper MT6



DY-SeriesDY-1600CDY-1700CDY-1800CDY-1900C
Machining Capability
Distance between centers (mm) 1500/2000/3000/4000/5000/6000/7000/8000/
9000/10000/11000/12000/13000~30000
Swing over bed (mm) 1600 1700 1800 1900
Swing over cross slide (mm) 1120 1220 1320 1420
Main Spindle
Spindle nose A2-15, 230mm, L:20-100, M:100-200, H:200-400
Spindle bore (mm) A2-20, 310mm, L:5-20, M:20-70, H:70-300
Spindle speed (rpm) A2-20, 360mm, L:5-20, M:20-70, H:70-250
Spindle taper A2-28, 410mm, L:5-20, M:20-70, H:70-250
Travel
X axis (Cross travel) (mm) 800 850 900 950
Z axis (Longitudinal travel) (mm) DBC minus 650
Y axis (Opt.) (mm) ±80
Feeds
X axis rapid traverse 5M/min
Z axis rapid traverse 5M/min
Cutting feed rate 0.001-500mm/rev (0.0004"-20"/rev)
Motors
Main motor (KW) 37
Tailsotck
Quill diameter (mm) 200/300
Quill travel (mm) 450
Quill taper MT6

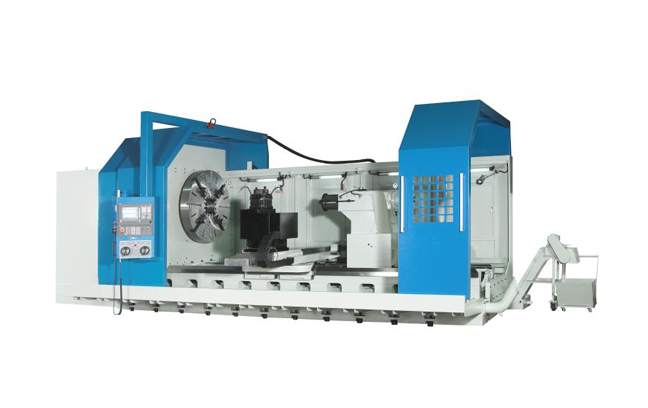

DY-SeriesDY-2000CDY-2100CDY-2200CDY-2300C
Machining Capability
Distance between centers (mm) 2000/3000/4000/5000/6000/7000/8000/9000/
10000/11000/12000~40000
Swing over bed (mm) 2000 2100 2200 2300
Swing over cross slide (mm) 1460 1560 1660 1760
Main Spindle
Spindle nose A2-15, 230mm, L:20-97, M:97-200, H:200-400
Spindle bore (mm) A2-20, 310mm, L:20-97, M:97-200, H:200-350
Spindle speed (rpm) A2-20, 360mm, L:20-97, M:97-200, H:200-300
Spindle taper A2-28, 410mm, L:20-97, M:97-200, H:200-250
Travel
X axis (Cross travel) (mm) 1000 1050 1100 1150
Z axis (Longitudinal travel) (mm) Same as distance between centers
Y axis (Opt.) (mm) ±80
Feeds
X axis rapid traverse 5M/min
Z axis rapid traverse 5M/min
Cutting feed rate 0.001-500mm/rev (0.0004"-20"/rev)
Motors
Main motor (KW) 45
Tailsotck
Quill diameter (mm) 250
Quill travel (mm) 450
Quill taper MT7



DY-SeriesDY-2400CDY-2500CDY-2600CDY-2700C
Machining Capability
Distance between centers (mm) 2000/3000/4000/5000/6000/7000/8000/9000/
10000/11000/12000~40000
Swing over bed (mm) 2400 2500 2600 2700
Swing over cross slide (mm) 1810 1910 2010 2110
Main Spindle
Spindle nose A2-15, 230mm, L:10-97, M:97-200, H:200-400
Spindle bore (mm) A2-20, 310mm, L:10-97, M:97-200, H:200-350
Spindle speed (rpm) A2-20, 360mm, L:10-97, M:97-200, H: 200-300
Spindle taper A2-28, 410mm, L:10-97, M:97-200, H:200-250
Travel
X axis (Cross travel) (mm) 1200 1250 1300 1350
Z axis (Longitudinal travel) (mm) Same as distance between centers
Y axis (Opt.) (mm) ±80
Feeds
X axis rapid traverse 5M/min
Z axis rapid traverse 5M/min
Cutting feed rate 0.001-500mm/rev (0.0004"-20"/rev)
Motors
Main motor (KW) Siemens spindle motor 1PH7184-NF, 51KW, 325Nm
Tailsotck
Quill diameter (mm) 300
Quill travel (mm) 450
Quill taper MT7
