| Model |

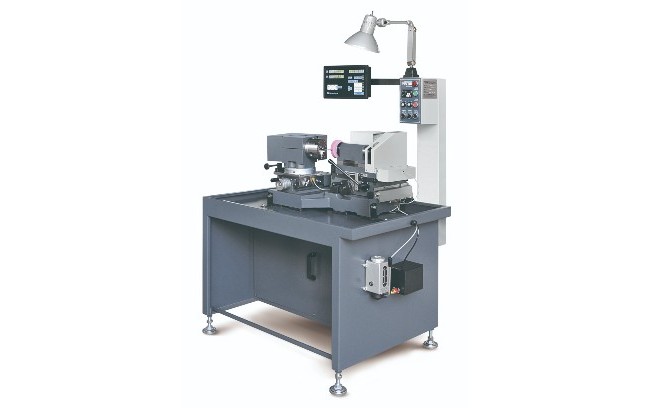

HOD4-SP |
| Clamping range of workpiece diameters (mm) |
1-95 |
| Range of grinding diameter (mm) |
0.8-40 |
| Travel X axis |
90 |
| Travel Y axis |
50 |
| Y axis feed per graduation (mm) |
0.005 |
| X, Y axes feed method |
Manually |
| X, Y axes feed rate |
Manually |
| Work spindle speed (variable) (RPM) |
0-600 |
| Work head swiveling angle |
+/- 22.5 degrees |
| Work head servo motor (HP) |
1 |
| Grinding Wheel motor (W) |
400 |
| Grinding Wheel spindle speed (variable) (RPM) |
0-12000 |
| Machine Dimensions (LxWxH) (mm) |
900x1180x1520 |
| Machine Weight (kgs) |
400 |
