EM Series

Product Specification

Model	EM-1460B	EM-1660B	EM-2065B
Travel
Longitudinal travel-X (mm)	1400	1600	2000
Cross travel-Y (mm)	600	650	650
Vertical travel-Z (mm)	700/800/900/10000
Table
Table size (mm)	1702x510	1900x510	2450x580
Table load (kgs)	1000	1000	1500
Spindle
Spindle taper	NT#4/BT#4
Quill travel (mm)	140
Spindle speed (rpm/min)	65-3580 16 steps
Vertical head swivelling angle	45°
Spindle nose to table (mm)	100~800/900/10000/1100
Spindle center to column (mm)	650
Motor
Spindle motor (mm)	5HPx2P/4P

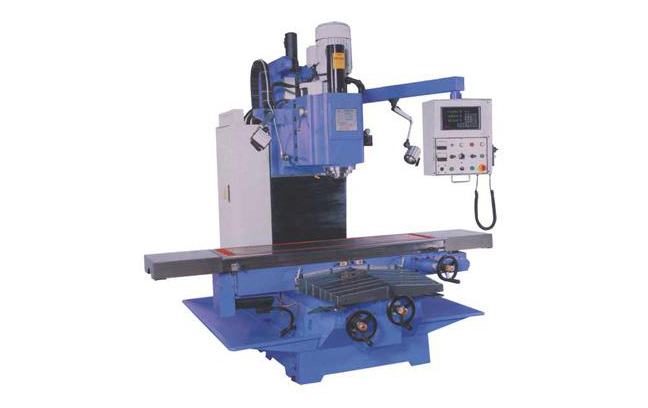

Model	EM-1460VF	EM-1660VF	EM-2065VF
Travel
Longitudinal travel-X (mm)	1400	1600	2000
Cross travel-Y (mm)	600	650	650
Vertical travel-Z (mm)	600/700/800/900
Table
Table size (mm)	1702x510	1900x510	2450x580
Table load (kgs)	1000	1000	1500
Spindle
Spindle taper	NT#50/BT#50
Quill travel (mm)	-
Spindle speed (rpm/min)	60-3000 (3 steps frequency inverter controlled)
Vertical head swivelling angle	-
Spindle nose to table (mm)	90~690/790/890/990
Spindle center to column (mm)	610
Motor
Spindle motor (mm)	10HP/4P

Model	EM-1460G	EM-1660G	EM-2065G
Travel
Longitudinal travel-X (mm)	1400	1600	2000
Cross travel-Y (mm)	600	650	650
Vertical travel-Z (mm)	600/700/800/900
Table
Table size (mm)	1702x510	1900x510	2450x580
Table load (kgs)	1000	1000	1500
Spindle
Spindle taper	NT#50/BT#50
Quill travel (mm)	-
Spindle speed (rpm/min)	60Hz 125-1100 (6 steps) / 50Hz 104-1400 (6 steps)
Vertical head swivelling angle	-
Spindle nose to table (mm)	120~720/820/920/1020
Spindle center to column (mm)	610
Motor
Spindle motor (mm)	10HP/2P/4P
